Stopping the Soak: A Kiwi Guide to Landscape Grading and Flood Prevention

In Auckland, we get our fair share of “liquid sunshine.” While a lush garden is great, that water needs a clear exit strategy. If your backyard looks like a pond after a downpour, your home’s foundation—and your expensive carpets—are at serious risk.

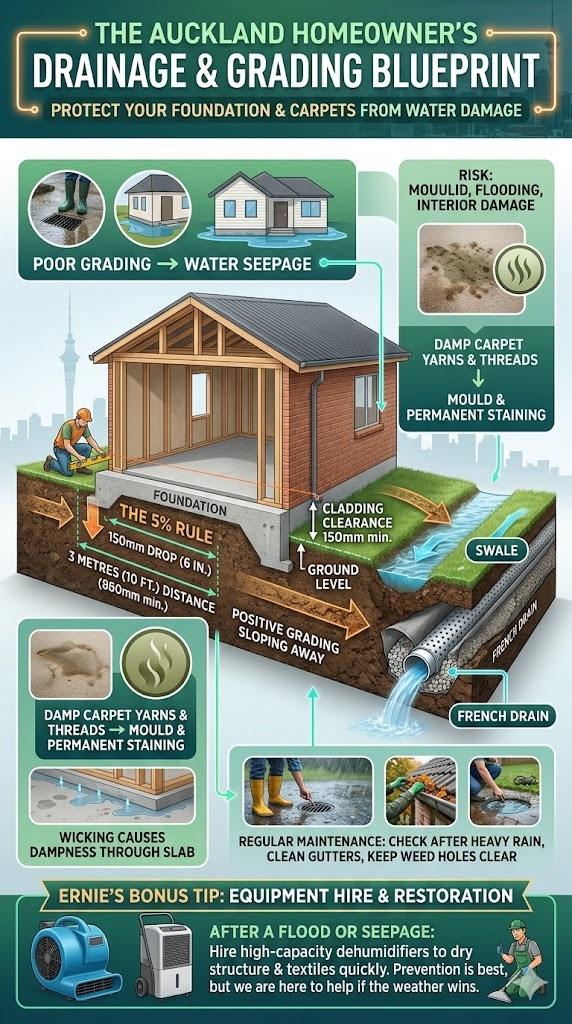

To achieve effective landscape grading, the ground must slope away from your home at a minimum of 5% (roughly 150mm over 3 metres). Proper surface drainage ensures foundation protection, preventing groundwater from infiltrating subfloors and damaging your interior textiles or structural timber framing.

Recommended Gradients for Auckland Properties

Surface Type	Minimum Slope (Fall)	Purpose
Lawn / Turf	5% (1:20)	Prevents pooling in grass
Garden Beds	5% -> 10%	Accounts for soil settling
Paved Paths	2% (1:50)	Quick runoff to drains
Driveways	1% -> 2%	Directs water to kerb

Slope Requirements for Residential Foundations

https://www.nachi.org/exterior-design-features.htm

---

🏗️ The Golden Rule: Getting the Fall Right

As a Licensed Building Practitioner (LBP), I see many Auckland homes where the garden has slowly “crept up” the side of the house. Over years of mulching, the ground level ends up higher than the floor joists. This is a recipe for disaster. You need a clear “fall” away from the house.

The goal is to move water quickly away from the “drip line.” In our experience servicing Auckland homes, we often find that even a slight reverse slope can lead to water sitting against the brickwork. This pressure eventually forces moisture through the wall, which is when you’ll need our flood restoration expertise.

Always ensure there is at least 150mm of clearance between the ground and your cladding. If the soil is too high, you’re essentially inviting rot into your bottom plates.

• Measure the fall using a simple string line and a line level.

• Dig out high spots that trap water near the walls.

• Ensure downpipes are connected to a legal stormwater outlet -> not just discharging onto the grass.

While structural grading is the first line of defence, some geotechnical engineers argue that over-draining Auckland’s reactive clay soils can lead to foundation cracking during dry summers.

---

💧 From Muddy Lawns to Soggy Carpets

You might wonder why a carpet cleaning pro cares about your backyard. It’s simple: most “mystery” carpet stains we see are actually “wicking” issues caused by external dampness. When your grading fails, the concrete slab absorbs moisture like a sponge, transferring it directly into the carpet yarns.

I remember a job in Remuera where the owner thought their cat was having “accidents” in every corner. After a quick inspection, I realised the outdoor patio was sloped toward the ranch slider. Every time it rained, the carpet threads were soaking up muddy groundwater. We had to bring in the heavy-duty dehumidifiers to save the subfloor.

If your carpet feels “tacky” or smells musty near external walls, your landscape grading is likely the culprit. Proper drainage keeps the humidity down inside, which prevents mould from growing in your floor materials.

• Check for damp patches on the tack strip under the carpet.

• Look for efflorescence (white powder) on the bottom of brickwork.

• Monitor “tide marks” on your internal skirting boards.

In contrast to modern flood restoration which uses high-airflow fans, some historical conservationists suggest that older lime-based mortars require a specific moisture balance to prevent crumbling.

---

🛠️ Practical Fixes: Swales, Drains, and Retaining

If your section naturally slopes toward your house, you can’t just fight gravity with a shovel. You need a system. A “swale” is a shallow, grass-lined ditch that intercepts water and carries it around the side of the house. It’s an effective, low-cost way to protect your foundation.

For tighter spaces, a French drain is the gold standard. This involves a perforated pipe buried in a gravel-filled trench. It catches the subsurface water before it reaches your footings. As a builder, I always recommend wrapping the pipe in “filter cloth” to stop silt from clogging the system.

• Swales -> Best for large lawns with gentle slopes.

• French Drains -> Ideal for narrow side-yards.

• Catch Basins -> Used at the bottom of steep driveways to grab surface water.

If you do experience an inundation, don’t wait for it to “air dry.” Auckland’s humidity is too high. Give us a call for professional dehumidifier hire to pull that moisture out of the building’s skeleton before permanent damage sets in.

From a carpentry perspective, keeping the timber dry is the priority, yet some landscape architects argue that retaining too much water on-site is essential for urban cooling and biodiversity.

---

Ernie’s Maintenance Tips & FAQs

How often should I check my grading?

I recommend a “wet weather walk” twice a year. Put on your gummies during a heavy Auckland downpour and see where the water is actually going. If it’s huddling against your house, it’s time to move some dirt.

What if my neighbour’s water is running onto my property?

In NZ, you generally can’t change your land in a way that causes “nuisance” to a neighbour. If you’re redirecting water, make sure it ends up in a council-approved stormwater drain, not just over the fence!

Can I fix grading myself?

Minor height adjustments in garden beds are easy DIY. However, if you need to move cubic metres of soil or install complex drainage, get a pro. You don’t want to accidentally undermine your own footings.

Key Takeaways

• The 5% Rule: Always aim for a 150mm drop over the first 3 metres.

• Clearance Matters: Keep soil and mulch at least 150mm below your cladding/weep holes.

• Indoor Impact: Bad grading leads to wet carpet textiles and mould growth.

• Act Fast: If water gets in, use professional drying equipment immediately to prevent rot.
