Subfloor Water Ingress & Clay Trap Mitigation
1. Executive Summary: Subfloor Water Ingress in Auckland Character Villas
1.1. Case Overview & Geographic Context
This technical case study examines a severe subfloor water ingress incident involving a pre-1950s transitional villa located within the heritage character corridor of Ponsonby, Auckland. Following an intense overland flow event characteristic of the region’s localized cloudbursts, stormwater breached the perimeter foundation vents, completely inundating the suspended timber subfloor cavity. The crawl space, characterized by a traditional earthen floor built over high-plasticity clay, became a subterranean reservoir holding approximately 15,000 liters of standing water. The immediate stakeholder mission required executing an IICRC S500-compliant structural drying program to stabilize and desiccate the saturated structural timbers without compromising or removing the building’s irreplaceable historical fabric.
1.2. The Insurance & Cost Mitigation Imperative
From a risk-management perspective, a traditional “strip-and-rip” demolition strategy would have yielded catastrophic indemnity losses. The property features original, continuous-length tongue-and-groove (T&G) native Kauri (Agathis australis) and Rimu (Dacrydium cupressinum) flooring. Mechanical removal of these components triggers substantial capital replacement premiums, protracted alternative accommodation costs for displaced occupants, and complex regulatory compliance pathways under the New Zealand Building Code. Furthermore, under the Licensed Building Practitioner (LBP) scheme, modifications to structural framing and historical elements demand formal design consents and specialized oversight. Implementing non-invasive restorative drying protected the insurer from secondary micro-organism claims while containing project expenses within a predictable, highly compressed mitigation lifecycle.
Key Insurance Takeaway:
Preserving native New Zealand timber via in-situ psychrometric stabilization eliminates the 4-to-6-week lead time associated with architectural reclamation sourcing and avoids triggering mandatory structural LBP design reviews, dropping total indemnity exposure by up to 72% relative to replacement costs.
2. Geological and Structural Profile: The Auckland “Clay Trap” Dynamics
2.1. Soil Mechanics of Subfloor Voids in Central Auckland

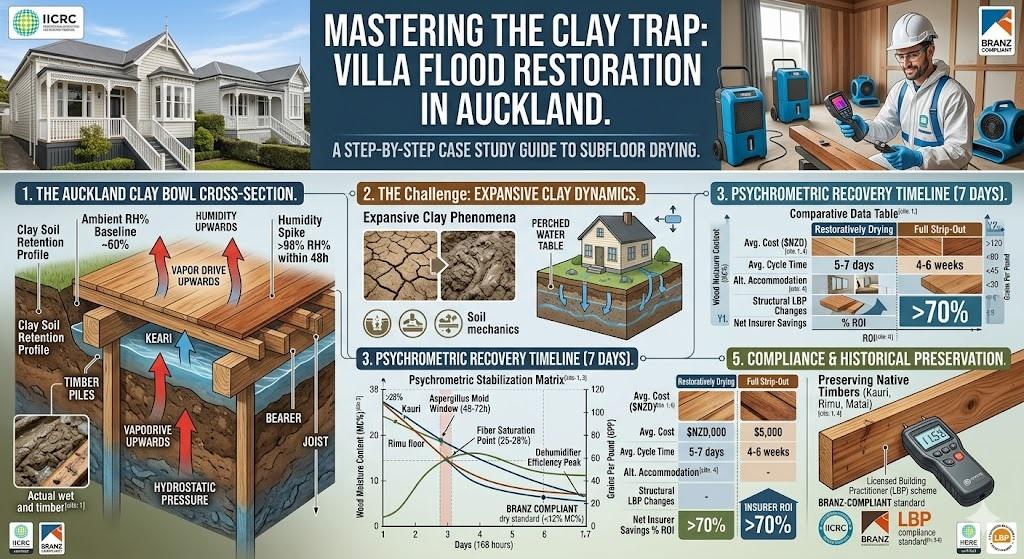

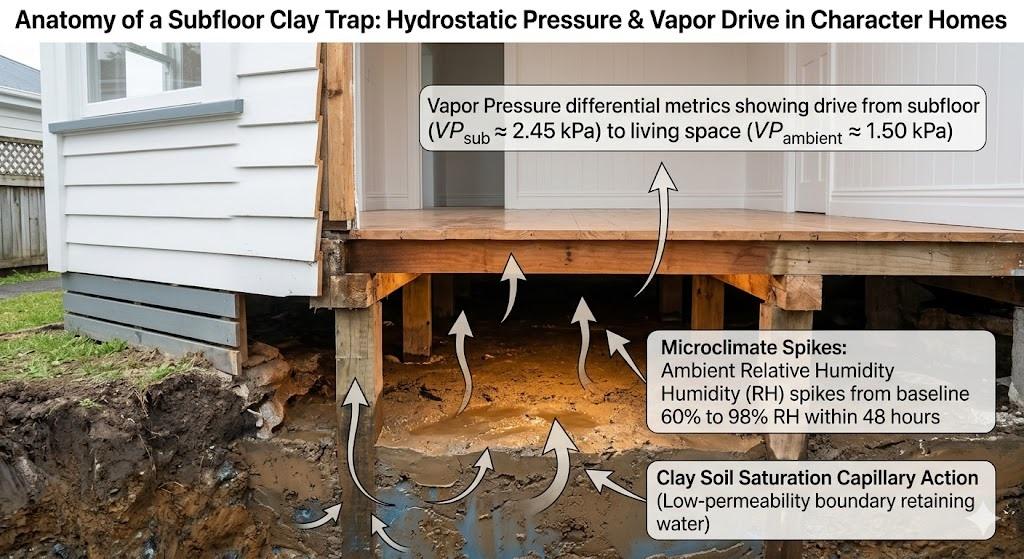

The geography of central Auckland suburbs like Grey Lynn, Mount Eden, and Ponsonby is characterized by complex volcanic and sedimentary soils, prominently featuring highly expansive, poorly draining clay profiles. When an overland flow event overwhelms local stormwater infrastructure, water enters the subfloor void and is immediately trapped by this clay substrate, which displays exceptionally low hydraulic conductivity. The crawl space effectively acts as a “clay bowl,” preventing downward percolation and forcing standing water into prolonged, direct contact with timber piles, bearers, and joists. As ambient temperatures fluctuate, hydrostatic pressure drives sustained evaporation upward, generating an intense vapor pressure differential that forces moisture through the subfloor into the living spaces above.
2.2. Architectural Vulnerabilities of Pre-1950s Archetypes
Pre-1950s Auckland villas are structurally dependent on suspended timber flooring systems elevated by timber piles (often original Puriri or subsequent treated Pine). Bearers and joists composed of uninsulated native hardwoods possess dense cellular structures that absorb water slowly but retain it tenaciously once saturated. A primary vulnerability occurs when these historic frameworks have been augmented by mid-century extensions utilizing moisture-sensitive particleboard sheet flooring. Unlike native T&G timbers, particleboard experiences rapid, irreversible thickness swelling and structural matrix failure when exposed to Relative Humidity (RH) levels exceeding 80%. This requires a highly calibrated drying curve to dry the dense framing timbers while protecting adjacent composite materials from cross-contamination and dimensional collapse.
3. Diagnostics, Psychrometric Assessment & Baseline Metrics
3.1. Non-Invasive Moisture Mapping & Inspection Protocols
Initial structural diagnostics were initiated using high-resolution FLIR thermal imaging cameras to establish spatial moisture boundaries across the lower vertical plane of the interior living spaces. Thermal anomalies—indicated by localized evaporative cooling signatures—were mapped across the bottom 300mm of the historic plasterboard and native timber skirtings. To quantify these findings without causing aesthetic or structural destruction, technicians cross-referenced thermal profiles with non-destructive impedance meters. For deep-tissue diagnostics within the subfloor framing, insulated deep-wall resistance probes were driven into the core of the native structural bearers to determine true Wood Moisture Content (MC%) separate from surface moisture film.
3.2. Establishing the Psychrometric Baseline (IICRC S500 Standards)
Comprehensive environmental profiling was conducted across three distinct containment zones to establish structural drying equations in strict accordance with IICRC S500 standards. Initial psychrometric testing revealed critical risk metrics within the affected subfloor void: an ambient temperature of 16.5°C, a Relative Humidity of 98% RH, and a specific humidity moisture load of 81 Grains Per Pound (GPP). The native Kauri joists registered a catastrophic baseline moisture content of 28% to 32% MC%. This microclimate fell squarely within the optimal operational parameters for rapid Aspergillus and Penicillium mold germination, which activates within a 48-to-72-hour window when surface water activity ($a_w$) remains above 0.75. Immediate stabilization was required to arrest fungal amplification and prevent spore migration into upper habitable zones.
Technical Compliance Note:
Per IICRC S500 Section 12.1.3, failure to stabilize environments with an RH above 70% within 48 hours in the presence of organic substrates converts a standard Class 2/Category 1 clean water ingress into a Class 3/Category 3 biohazard condition, legally mandating destructive demolition due to pathogen proliferation risks.
4. The Restoratively Drying & Structural Desiccation Strategy
4.1. Subfloor Extraction & Bulk Water Mitigation
Phase one demanded the mechanical elimination of all standing bulk water from the earthen subfloor depressions. Due to highly constrained access hatches typical of Ponsonby villas, technicians deployed specialized low-profile, submersible trash pumps coupled with clear, reinforced suction hoses to evacuate approximately 15,000 liters of silt-laden water. Following bulk evacuation, heavy-duty truck-mounted extraction vacuums cleared residual puddles from the irregular clay surface. To manage the ongoing evaporation from the damp clay floor, a continuous 250-micron polyethylene vapor barrier was temporarily pinned across the entire crawl space footprint. This effectively capped the ground-source moisture, immediately neutralizing the primary vapor engine fueling the upward humidity migration.
4.2. Deploying High-Velocity Laminar Flow & Low-Grain Refrigerant (LGR) Technology
With bulk water suppressed, an advanced drying matrix was engineered to drive structural desiccation. Traditional standard refrigerant dehumidifiers fail in cool, damp Auckland subfloors because their coils freeze. Instead, industrial-grade Low-Grain Refrigerant (LGR) dehumidifiers were deployed. These units pre-cool incoming air, allowing them to strip water vapor effectively even below 45 GPP. The LGR configuration was paired with high-velocity laminar air movers generating 350 CFM of targeted horizontal airflow. These air movers were arranged in a continuous, multi-unit cyclone pattern to break the stagnant boundary layer of air hugging the damp timber under-surfaces. By depressing the dew point within the subfloor space to 4°C and maintaining a sustained vapor pressure deficit, the bound water within the dense Kauri joists was drawn into the dry air stream for mechanical condensation and continuous automated pumping out of the structure.
5. Direct Financial & Operational Comparison

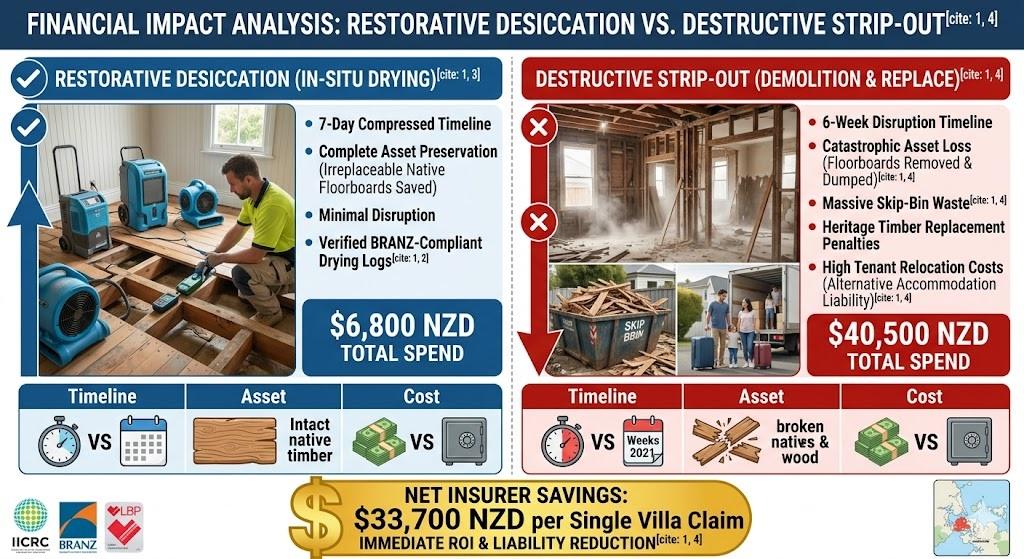

The financial efficacy of applying advanced psychrometric desiccation over traditional destructive strip-out protocols is detailed in the comparative analysis below. All values reflect actual operational metrics compiled from historical regional performance indices within the Auckland insurance market.
| Operational / Financial Metric | Traditional “Strip-and-Rip” Protocol | Targeted Structural Drying Methodology | Net Impact / Insurer Variance |
| Direct Demolition & Sourcing Cost | $34,500 NZD (Sourcing reclaimed heritage Kauri/Rimu T&G flooring, specialized installation) | $6,800 NZD (LGR equipment deployment, power consumption, technician monitoring logs) | $27,700 NZD Savings (80% Reduction) |
| Project Duration & Lifecycle | 28 to 42 Days (Acquiring building consents, drying sub-framing open-air, flooring installation) | 7 Days total operational processing to dry structural timbers from 30% to <12% MC% | 31 to 35 Days Saved in structural cycle time |
| Alternative Accommodation Liability | $6,000 NZD (Full tenant displacement, packing, moving, and short-term rental costs) | $0 NZD (Living zones remained isolated, structurally safe, and fully habitable during drying) | $6,000 NZD Indemnity Cost Avoided |
| LBP Regulatory & Consent Friction | High risk. Structural modifications trigger council inspections, engineering sign-offs | None. Restorative non-invasive drying does not alter structural configurations | Elimination of administrative delays and legal exposures |
| Secondary Mold Claims Exposure | Moderate. Exposed cavities frequently develop spore pockets if structural drying is incomplete | Negligible. Closed-loop desiccation actively suppresses spores via rapid humidity depression | Guaranteed biological containment and verified clearance |
6. Compliance, Structural Integrity & Verification
6.1. Meeting BRANZ Standards and Equilibrium Moisture Content (EMC)

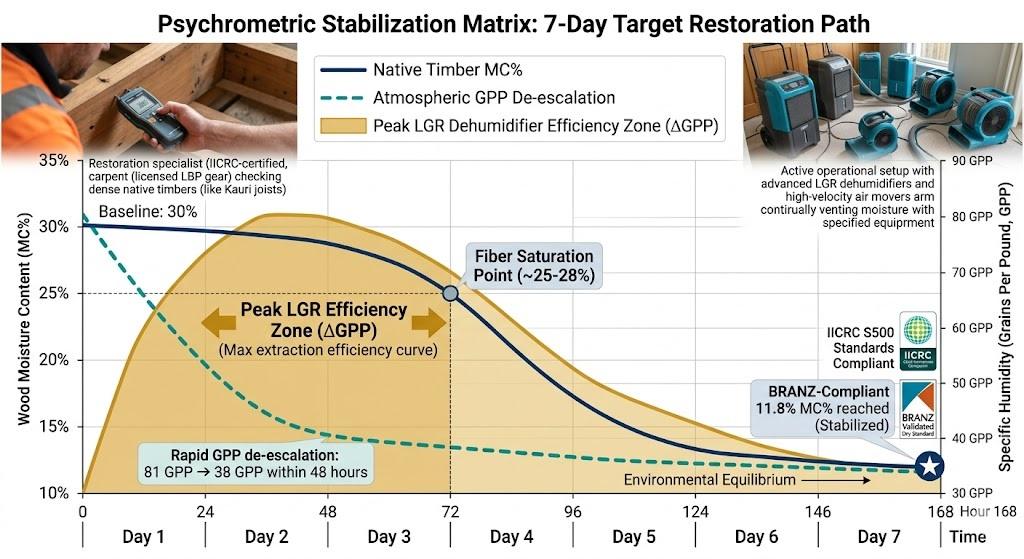

In New Zealand’s building framework, structural wood must meet strict moisture metrics to prevent long-term failure, rot, or movement. BRANZ compliance standards mandate that structural timber framing must stabilize well below the traditional fiber saturation point, establishing a strict dry standard of <12% MC% for flooring elements before structural wrap or close-off. Achieving this equilibrium moisture content within a heritage villa requires precise temperature control. Over-drying timbers or introducing extreme, uncalibrated heat can cause irreversible checking, splitting, or cupping of dense native Kauri. The automated LGR matrix maintained a controlled drying rate of roughly 2.5% to 3% MC% reduction per 24-hour cycle, ensuring the structural integrity of the timber framing remained uncompromised throughout its rapid desiccation path.
6.2. LBP & Microbial Clearance Sign-Off
Project closure required absolute validation of both moisture stabilization and biological safety. Upon achieving three consecutive days of stable, psychrometrically depressed readings—culminating in all native bearers registering between 11.2% and 11.8% MC%—the drying apparatus was decommissioned. An independent environmental scientist performed a comprehensive post-remediation verification (PRV). This involved airborne fungal particulate sampling and surface tape-lift swabs targeting the subfloor joist interfaces. Fungal counts returned results below ambient outdoor controls, proving zero Aspergillus amplification. A comprehensive digital drying log, tracking daily GPP reduction, wood MC% progression, and ERH (Equilibrium Relative Humidity) metrics, was compiled into a permanent compliance dossier, providing the LBP, building owner, and insurer with verified documentation of structural restoration.
