Quick answer: Hidden wall and ceiling cavities should be assessed after a leak whenever water may have travelled beyond visible damage. A drying plan begins with stopping the source, mapping the affected materials and using controlled airflow and dehumidification only where the cavity and water conditions are suitable.
Water can travel behind GIB, beneath skirtings and into ceiling spaces long after the visible carpet or wall surface looks dry. After a leak, burst pipe or stormwater intrusion, hidden moisture needs a measured drying plan to reduce the risk of mould, timber deterioration and unnecessary demolition.
Documented Auckland example: checking beyond a ceiling leak
| Assessment point | What the documented job showed |
|---|---|
| Visible entry | Water was visible at a ceiling light fitting. |
| Scope beyond the entry | Two hallways, one bedroom, and ceiling and wall materials required assessment. |
| Drying and checks | Extraction and controlled airflow were used. Carpeted areas dried over three days while wall access and structural checks continued as work progressed. |
Why this matters: a ceiling void cannot be assessed from its visible face alone. The practical boundary depends on the water path, materials, safe access and moisture readings.
Read the full documented ceiling pipe-leak case study.
This was one indoor pipe-leak job. It is not a promise of a three-day result or the scope needed after every ceiling leak; the water source, materials, migration and electrical safety must be assessed on site.
Where moisture can remain after a leak
| Area | Why it needs checking |
|---|---|
| Behind wall lining | Water can travel down framing and remain concealed from view. |
| Under skirting and flooring edges | Capillary movement can carry moisture below a surface that feels dry. |
| Ceiling cavity | Water can spread across linings, insulation and framing from the leak point. |
| Timber framing | Drying progress needs measurement because surface appearance can be misleading. |
When wall and ceiling cavities need attention
Check for swelling skirtings, soft GIB, staining, damp insulation, a musty odour or moisture readings that remain elevated around the visible damage. Water may spread beyond the original wet area, particularly around floor-to-wall junctions, plumbing penetrations and ceiling cavities below an upstairs leak.
How professional cavity drying works
Surface fans alone do not reliably dry an enclosed cavity. A restoration technician first maps the affected area, confirms the water category and looks for a safe route to introduce and recover airflow. Where appropriate, a centrifugal air mover with ducting or a multi-port attachment moves dry air through the cavity while a commercial dehumidifier controls the moisture released into the room.
| Approach | Best suited to | What it does |
|---|---|---|
| Surface airflow | Exposed finishes | Supports evaporation from accessible materials. |
| Directed ducting | Accessible wall or ceiling voids | Moves air through a contained cavity using planned entry and exit points. |
| Dehumidification | The affected room and drying chamber | Removes the moisture that airflow releases from materials. |
A practical drying sequence after a leak
- Make the area safe. Isolate power if water may have reached electrical fittings, stop the water source and avoid disturbing contaminated water.
- Document and map the moisture. Record the visible damage, then check adjoining linings, timber and flooring. Moisture mapping helps show where water has migrated.
- Choose a drying method. Sound, clean, accessible cavities may be dried with controlled airflow and dehumidification. Wet insulation, contamination, degraded linings or inaccessible materials can require targeted removal.
- Monitor rather than guess. Drying time depends on the materials, moisture load, indoor conditions and equipment setup. Readings should trend toward an appropriate dry standard before closing, painting or rebuilding.
When opening a wall is necessary
Opening a small section may be the sensible option when insulation is wet, a cavity cannot be ventilated, materials are deteriorated, or the water source was contaminated. Controlled removal is preferable to sealing in moisture. See how wet drywall is assessed for the decision points.
Equipment and structural drying
For a clean-water leak where structural materials can be retained, the right combination of air movers and commercial dehumidifiers can support controlled drying. When framing, cavities or concealed building materials are affected, our Timber Frame Drying Auckland service provides moisture-led structural drying.
Frequently asked questions
Can I use a household fan to dry inside a wall?
A household fan may help ventilate an open room, but it usually cannot create controlled airflow through a restricted cavity. It also does not confirm whether the timber or insulation has dried.
How long does cavity drying take?
There is no reliable fixed timeframe. A small, clean leak may dry quickly once the source is stopped, while saturated timber, insulation or a ceiling void can take longer. Moisture measurements guide the decision.
Do technicians need to drill holes?
Sometimes small, planned access points are used behind skirtings or in discreet areas. The aim is to gain enough airflow and verification access while avoiding unnecessary removal of sound linings.
Need help after water has entered a cavity?
If water may have moved beyond the visible damage, early assessment can limit the scope of repairs. Carpet Drying Force’s Auckland flood restoration and carpet drying service can assess moisture migration and plan the next steps. For a clear explanation of the budget factors after a leak, see our Auckland flood restoration cost guide.
Hidden wall and ceiling moisture FAQs
How can water be trapped behind a wall when the surface feels dry?
Water can enter wall cavities through openings, travel along framing or collect behind linings. The face of a wall may dry before the enclosed space does.
Do wall cavities always need to be opened after a leak?
No. The right approach depends on the water source, materials, moisture findings and access. Assessment helps determine whether targeted access and drying are needed.

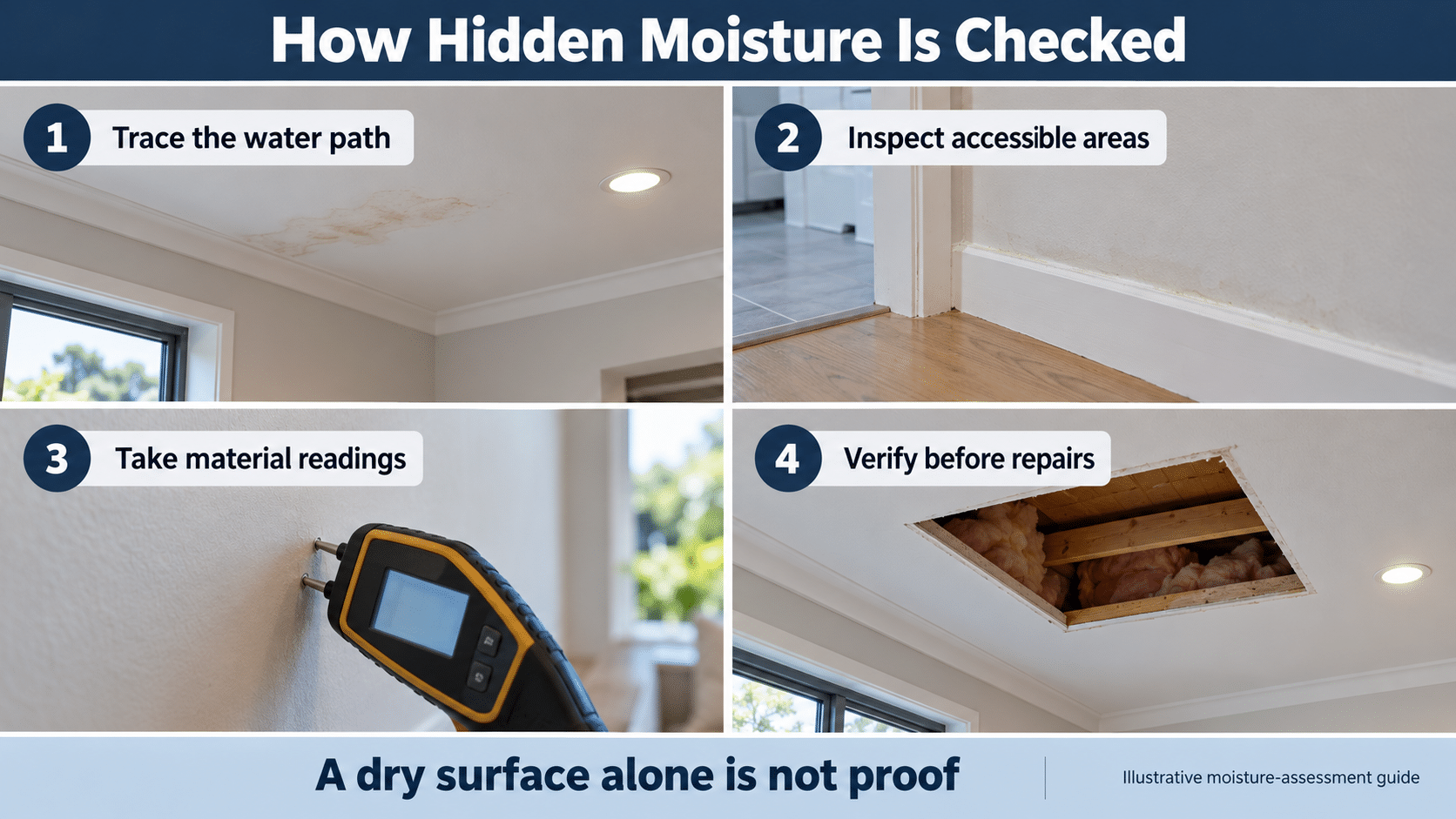

How is concealed moisture checked?
Appropriate moisture readings, inspection points and comparison with unaffected materials can help identify whether concealed areas need further drying.
Illustrative moisture-assessment guide
